  T1,T2 Series






  Here are some examples of the T1 and T2 guitars.  These guitars share the same body shape as the Standard, the main difference being the absence of a separate carved top.  They do, however, have a fore-arm contour on the front for comfort along with the body contour on the back.   The models shown here are fairly typical of a standard version; custom versions of these guitars are limited only by ones imagination.

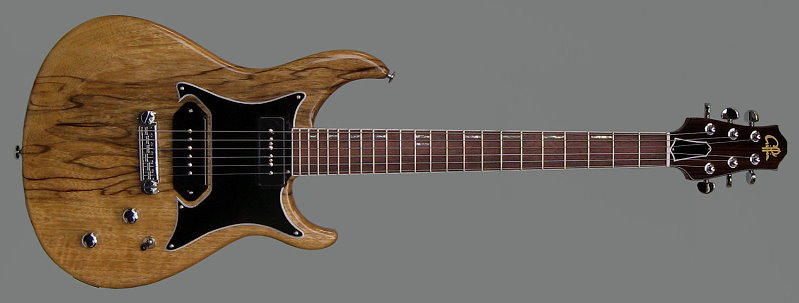

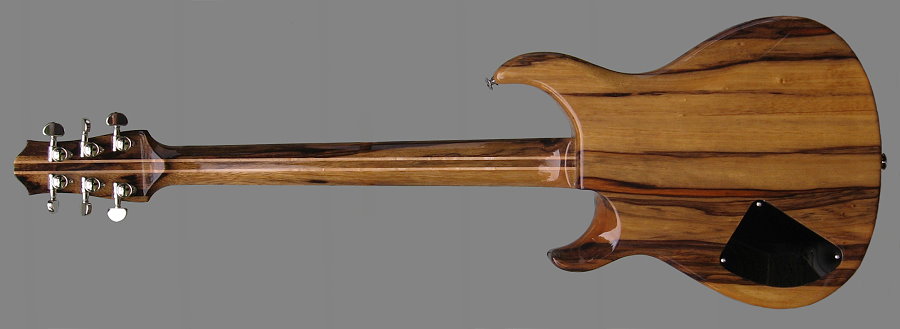

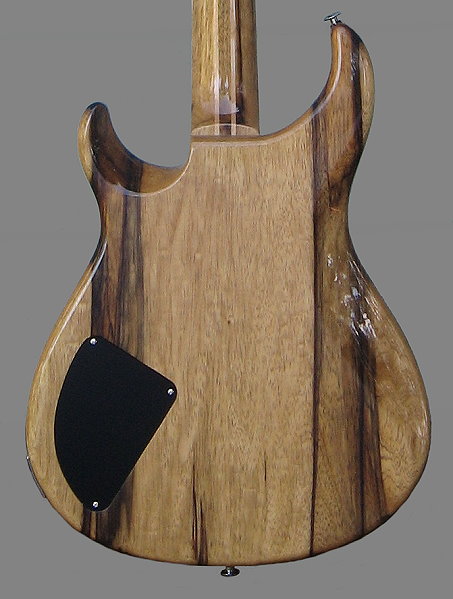

T2 Black Limba, clear finish
Specifications:
Body:  Black Limba
Neck:  Black Limba / Maple
Fingerboard:  Rosewood
Scale length:  24 3/4 inches
Inlay:  Standard Pearl lines
Head Veneer:  Black Fiber
Hardware: Nickel
Bridge:  TonePros AVT2
Tuners:  Grover Rotomatics
Pickups:  Amalfitano P90s
Finish:  Clear gloss

T2, Black Limba - frontT2, Black Limba - backT2, Black Limba - body view1T2, Black Limba - body backT2, Black Limba - body view2


T2, Black Limba, Clear gloss





T2 Black Limba, Caramel
Specifications:
Body:  Black Limba
Neck:  Black Limba / Maple
Fingerboard:  Rosewood
Scale length:  24 3/4 inches
Inlay:  Standard Pearl lines
Head Veneer:  Black Fiber
Hardware: Nickel
Bridge:  TonePros AVT2
Tuners:  Gotoh
Pickups: Lindy Fralin P90s
Finish:  Caramel

T2, Black Limba, Caramel finish - frontT2, Black Limba, Caramel finishT2, Black Limba, Caramel finish - body view1T2, Black Limba, Caramel finish - body view2T2, Black Limba, Caramel finish - body view3


T2, Black Limba - Carmel finish





T1 TV Yellow
Specifications:
Body:  Honduras Mahogany
Neck:  Hond. Mahogany with
Maple laminates
Fingerboard:  Rosewood
Scale length:  24 3/4 inches
Inlay:  Standard Pearl lines
Head Veneer:  Black Fiber
Hardware: Nickel
Bridge:  ABM Wraparound
Tuners:  Gotoh / white buttons
Pickups:  Lindy Fralin
Finish:  TV Yellow

         T1, TV Yellow - frontT1, TV Yellow - backT1, TV Yellow - body view1T1, TV Yellow - body view2T1, TV Yellow - body view3T1, TV Yellow - head


T1, TV Yellow





T1 Sonic Blue
Specifications:
Body:  Honduras Mahogany
Neck:  Hond. Mahogany with Maple laminates
Fingerboard:  Rosewood
Scale length:  24 3/4 inches
Inlay:  MOP dots
Head Veneer:  Black Fiber
Hardware: Nickel
Bridge:  Wilkinson
Tuners:  Gotoh
Pickups:  Kent Armstrong P90
Finish:  Sonic Blue

    T1, Sonic Blue - frontT1, Sonic Blue - backT1, Sonic Blue - body view1T1, Sonic Blue - body view2T1, Sonic Blue - body view3


T1, Sonic Blue



      Other examples T1, T2

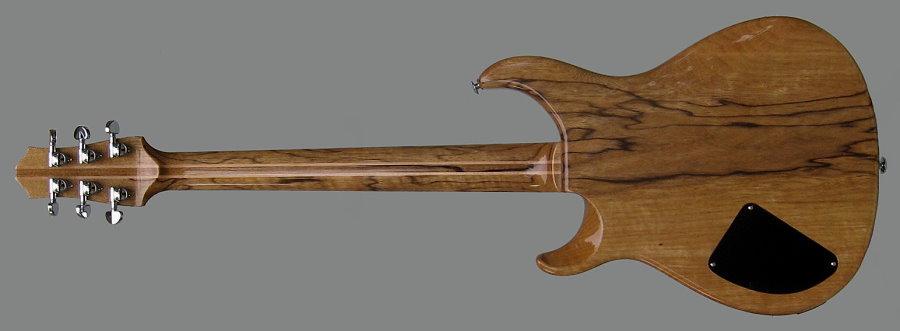

T2, White Limba

T2, Pelham blue (greenish)

T2, White Limba

  T2, Pelham blue (greenish version)

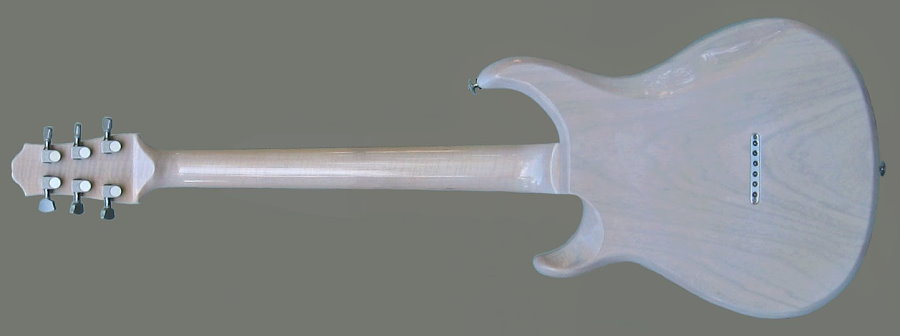

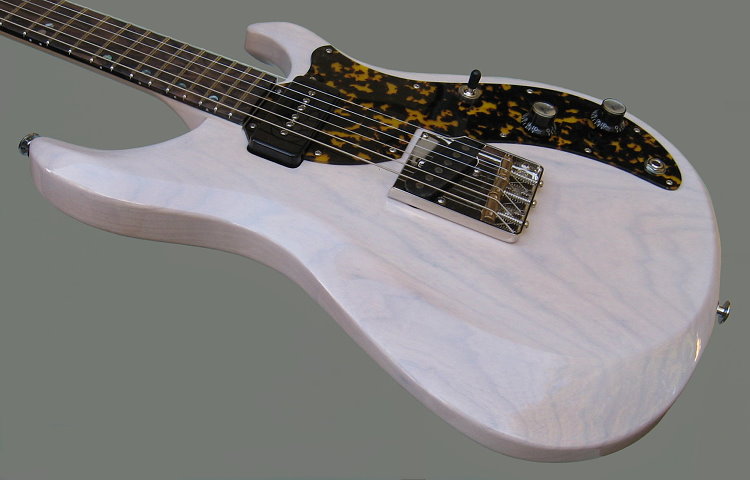

 T1, Trans White finish

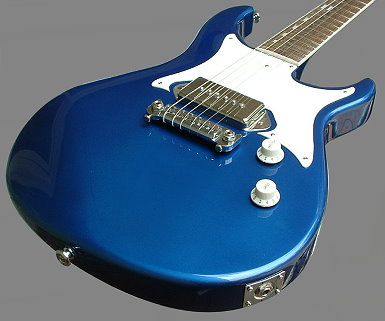

T1, Metallic Blue finish

T1, Trans White finish

  T1, Metallic Blue finish


 T1, Cherry Red

T2, Black Limba, Clear gloss

T1, Cherry Red


T2, Black Limba, Clear gloss

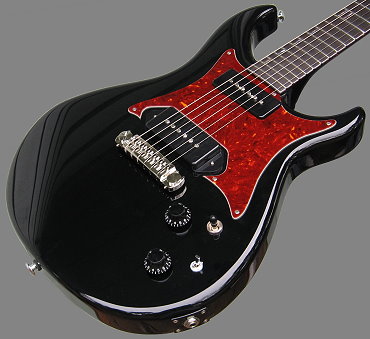

T2, Black

T1, White

T2, Black


T1, White






General specifications for the Giffin T Series:


T1 - basic model price:  $2,700

T2 - basic model price: $2,975

(Please note that Black Limba (body and neck wood) is now a $150 upgrade, due to increased difficulty to obtain suitable material.)

 (All instruments ordered directly from me are considered "custom orders" even if they fit within the basic model specs.)


Please contact my dealers for availability and retail price for already built Giffin guitars.
   Any custom guitar ordered using parts and materials from this light blue box section should fall within the basic model price, and will not add to the price.  Any custom option from the dark blue box below will add to the price by the amount shown.


Materials used for basic models:


Wood:                                                                                                                                 The Wood  Pile
Body:  Philippine Mahogany, Honduras Mahogany, African Mahogany
Neck:  Laminated Honduras Mahogany
Fingerboards:  Rosewood


Hardware:
Tuners:   Gotoh, Kluson, Grover, Sperzel, Hipshot
Bridge:  Wilkinson, TonePros, ABM, Pigtail, Schroeder
Pickups:  Single or double P90, Amalfitano, Kent Armstrong, Razor, Wolfetone, Gibson, Lindy Fralin
Guitar controls: 1-volume, 1-tone (CTS pots) Switchcraft selector on 2-pickup models


Neck dimensions:
Scale Length:  24 3/4 inches
Width at nut:  1 11/16 inches, width at 22nd fret:  2 1/4 inches.
Neck thickness at first fret:  .890 inches to .910 inches.  Thickness at 12th fret:  .990 inches to 1.000 inches.
General neck shape is based on a 50's Gibson  which is a 'C' shape at the body end tapering down to a slight 'V' shape at the nut end.
Neck/body joint:
  Neck joins body at 21st fret.  Heel is cut away to an unobtrusive but safe minimum.



Additional options for Custom orders
  (Upgrades)

Body and neck wood:  Black Limba - Add $150

Optional Fingerboards:   For available fingerboard material and pricing, please call / e-mail.
Other scale lengths available:  25 1/2 inch

For any other custom details - please call / e-mail  for quote

Hardware:  For hardware options other than standard, please call / e-mail for quote.
